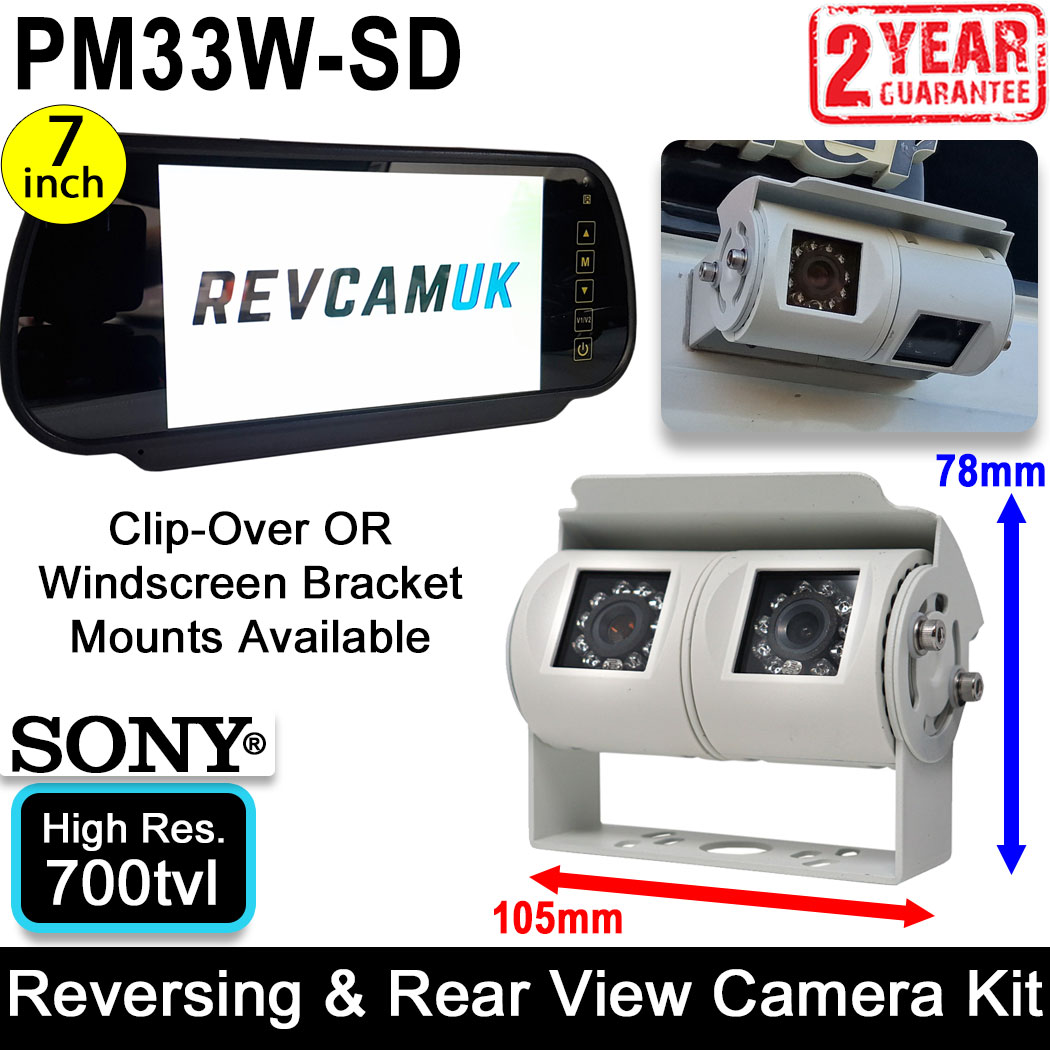

Twin Lens White Motorhome Reversing + Rear View Camera Kit Details with Mirror Monitor

This mirror mounted reversing camera kit includes a white-painted stainless steel TWIN bracket reverse and rear view camera. The high-resolution digital LCD panel on the monitor and the Sony 1/3" CCD 700tvl image sensor on the camera means you can expect a good picture quality day and night. The kit offers :

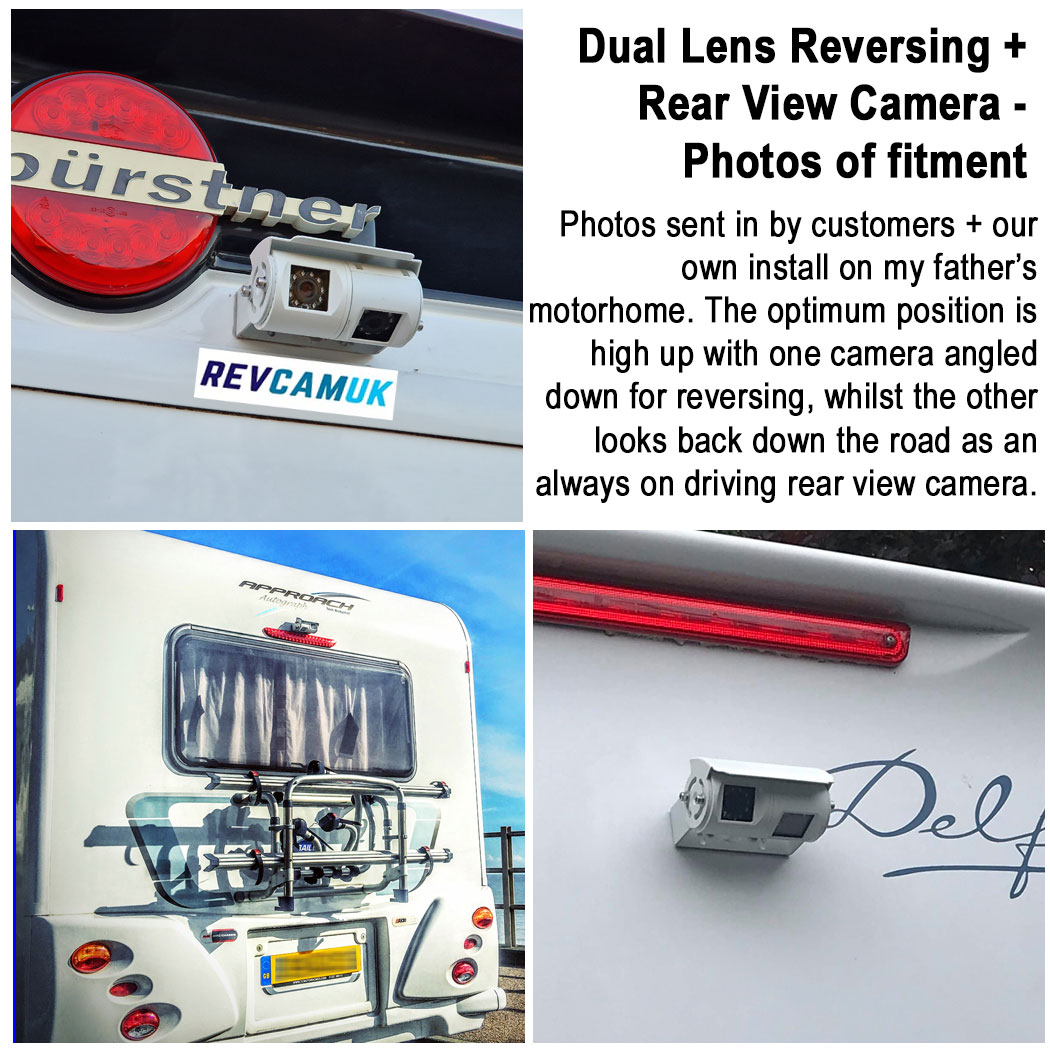

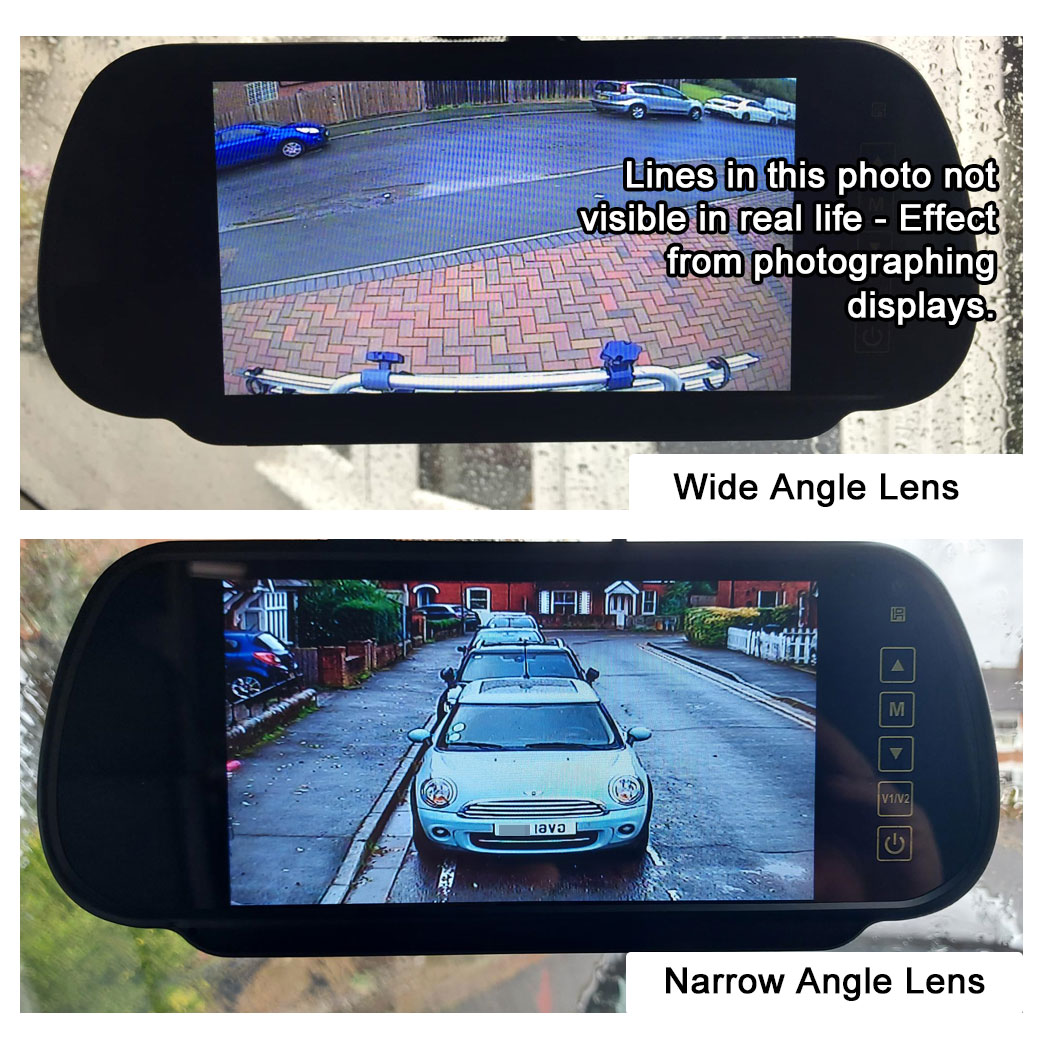

Two Cameras in One Bracket - This product bundle will give you both a rear view camera and a reverse parking camera in one bracket. The most popular option for motorhomes. Makes the kit useful 100% of your driving time vs the 0.1-2% of the time you are reversing.

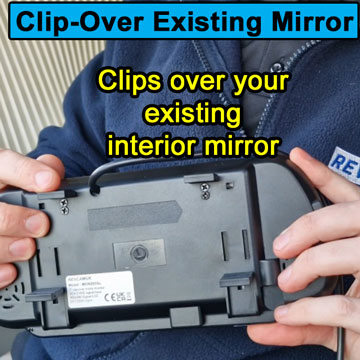

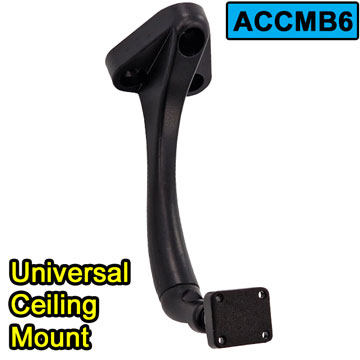

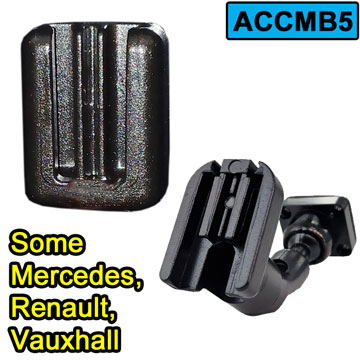

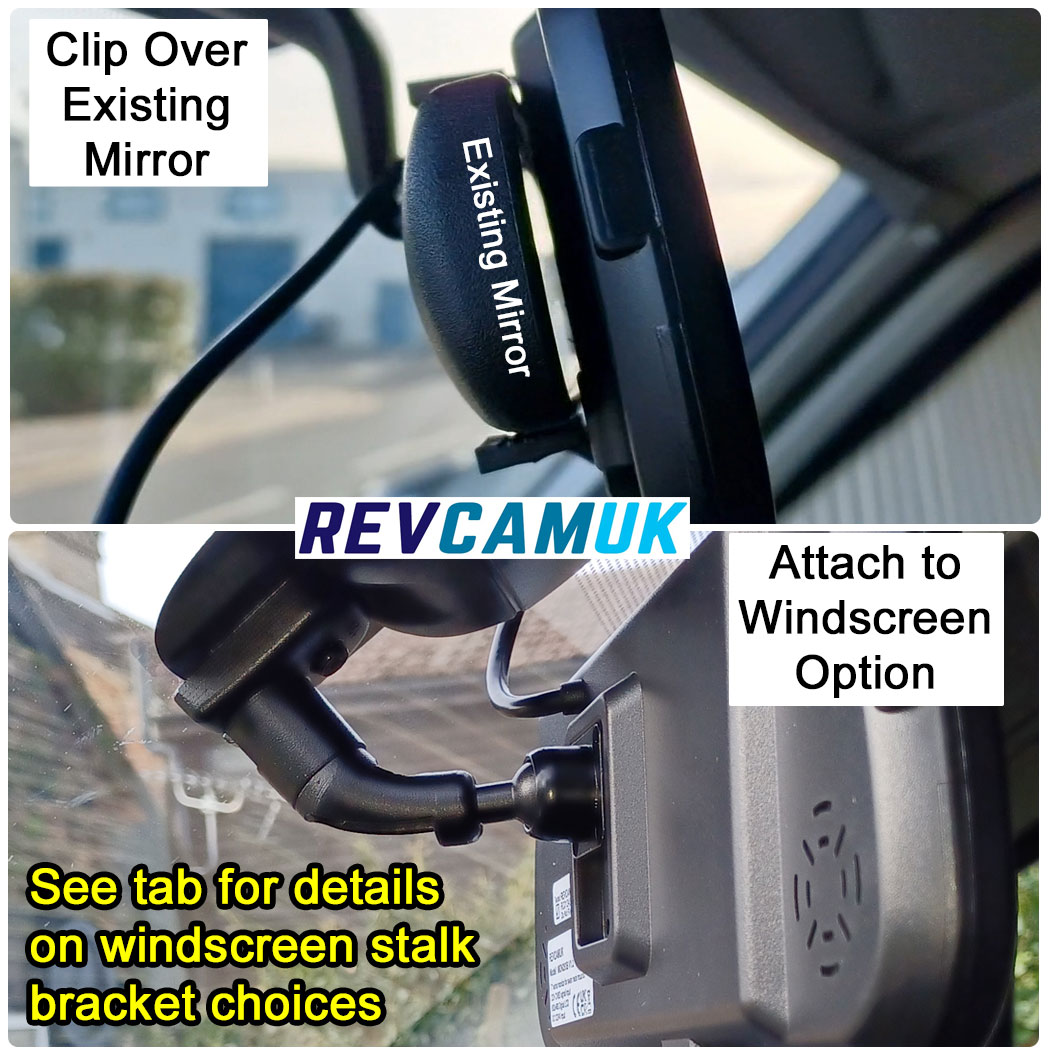

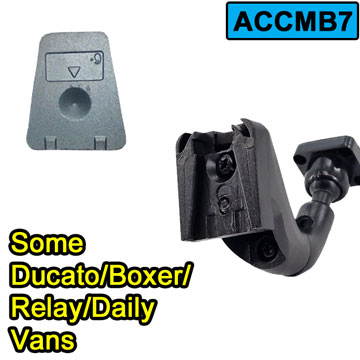

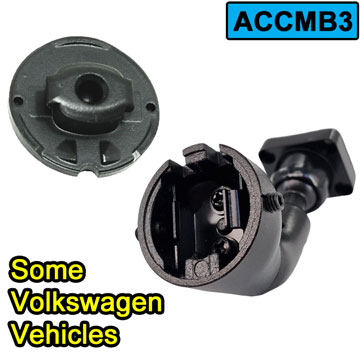

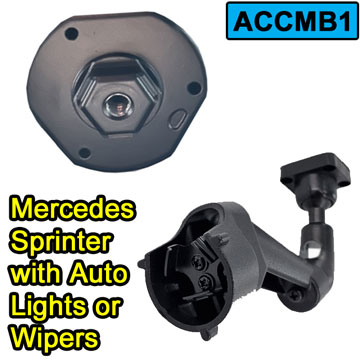

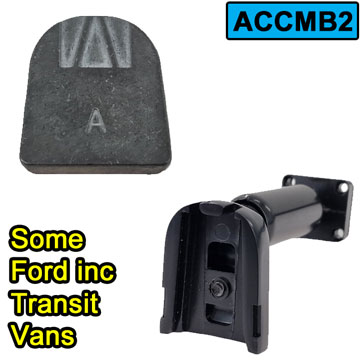

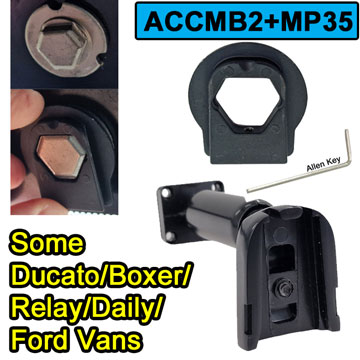

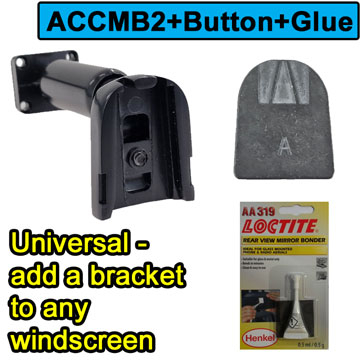

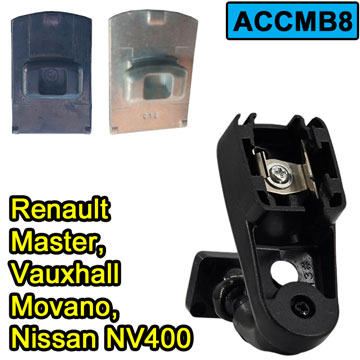

Choice of Mirror Mounting Options - We stock two types of mirror monitor, made by the same factory to the same spec but with different rear mounting panels. The clip over type has strong spring loaded lower clips that pull down to clamp against an existing interior mirror to provide a secure fit. To attach directly to the windscreen please see our info tab named "mirror mount options" for more details of the windscreen stalk (swan neck) brackets available.

High Resolution Display - Fitted with one of the best quality 7" hi-res digital LCD panels we have seen, this mirror monitor will give you rich colours, a bright picture that is easy to see, and easy to view even when sat at an angle to the display.

High Resolution Reverse Camera - This bracket camera is fitted with a Sony 811 700tvl 1/3" CCD image sensor. Very widely respected in the CCTV industry. The image sensor is the part of the camera that captures the picture detail, so it has a huge impact on picture quality. We consider this to be the best image sensor available for standard definition reversing cameras.

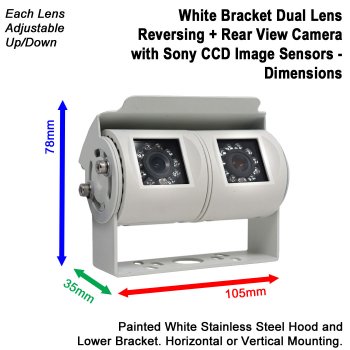

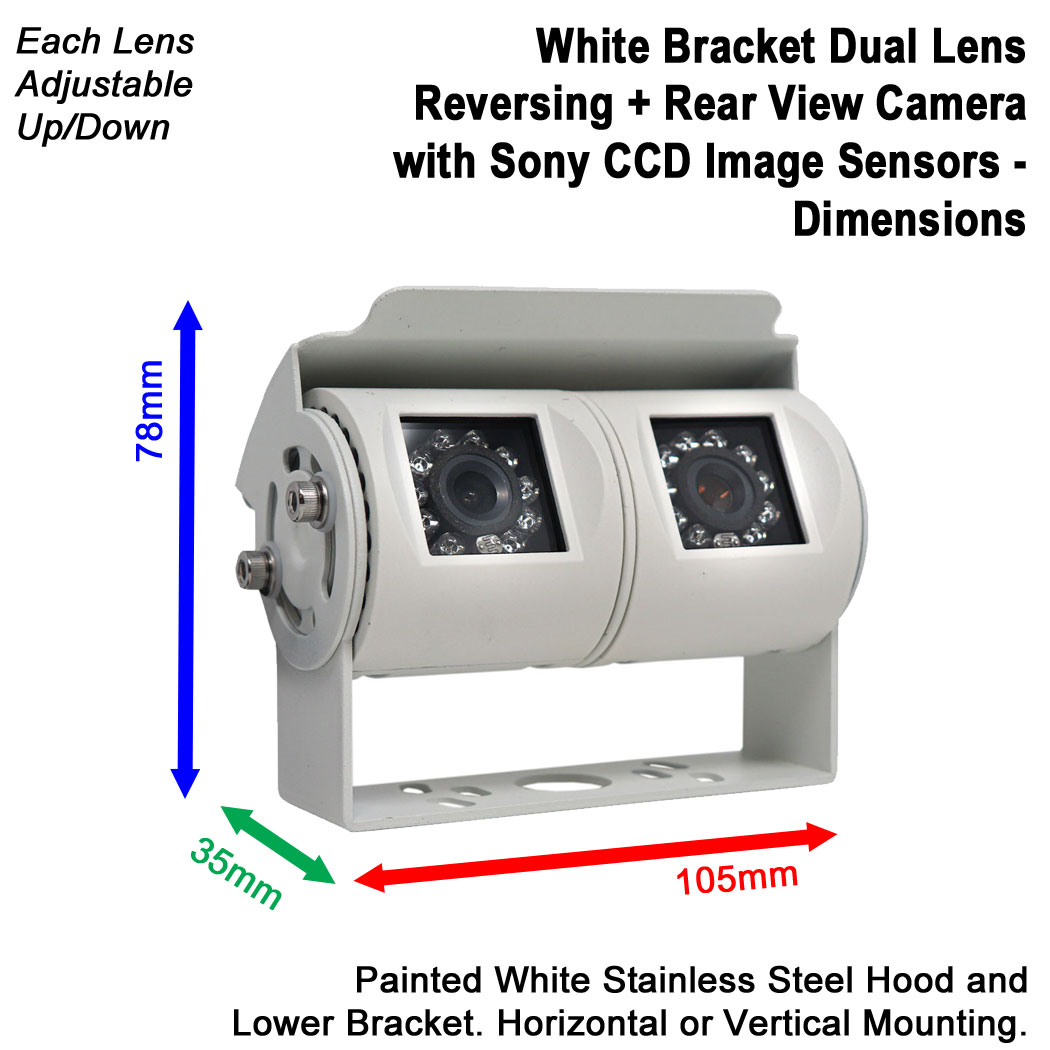

Anti-Rust Stainless Steel Bracket and Hood - Both parts of the bracket are made from painted stainless steel. Stainless steel doesn't suffer from the rusty, broken brackets that mild steel suffers from. Most reversing cameras you find on the market today are still using mild steel. You can check using a magnet - mild steel will stick to the magnet, whilst stainless steel won't. The paint finish on both bracket and main body is also matt finish as we find this is more corrosion resistant than gloss finish paints. This reversing camera will stay looking good for a long time.

Add Adjustable Guidelines to Image - The menu system on this monitor is one of the most advanced that we have come across. One of the features is that you can add guidelines to the picture, as well as move them about. You can even choose to measure the distance to the lines and change the numbers, as well as specifying if you wish the units to be displayed as M or ft. To use this feature you must use the green reverse trigger wire, if you activate them in the menu the lines will only display when the green trigger has power e.g. when in reverse. For more details please see page 6 of our rear view mirror monitor instruction manual.

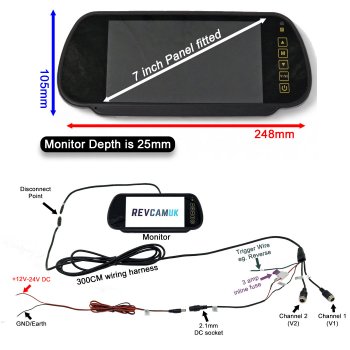

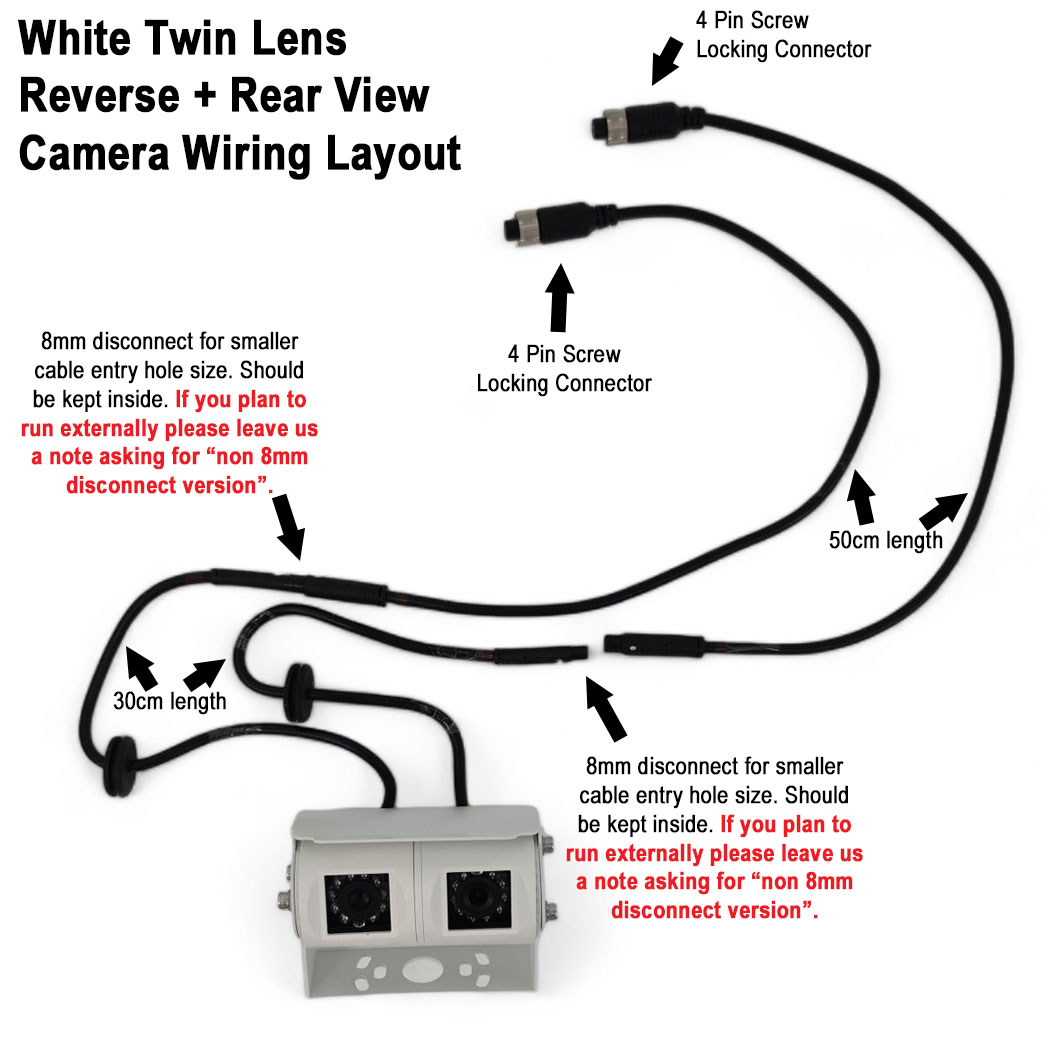

Easy-Fit Wiring - The wiring uses our 4 pin screw locking connectors, which carry both power/signal down the same cable. This means the monitor sends power to the camera, so no reverse light connection is required (unless you wish to use the trigger wire for auto switching between cameras). Just a single extension cable to run the length of the vehicle, the 2x connections on both sides become a single cable approximately 30cm/1ft from the end of the cable.

Convenient Location - This monitor is one of the most popular for cars, vans, and motorhomes because it is a natural place to look when you want to view behind you, as well as keeping the dashboard clear for other devices you may use.

Two Year Guarantee and Lifetime Support - This monitor and reversing camera kit should last a very long time without any issue. We guarantee it to be free from faults for two years. After two years we are able to offer low cost repairs on the monitor to keep your system in good condition and avoid extra time or expense installing all new components. We also keep good stock of spare parts such as wiring harnesses, cables, and cameras should you decide to take the monitor out of the vehicle with you when you sell your vehicle but leave the wiring where it is.

Choice of power options - We have had a DC socket added to the monitors wiring harness that allows you to select various power lead attachments to plug in to this. As standard you are supplied with a lead that terminates in a red wire (+12V / +24V) and black wire (Earth / Ground). You may also choose from a cigarette lighter 12V plug option, or an easy wire fuse tap option that allows you to hardwire the whole kit without soldering or crimping. Simply remove a fuse from the fuse box, insert it in to the fuse tap, then connect the earth terminal to a chassis screw/bolt. See the power options tab for more details.

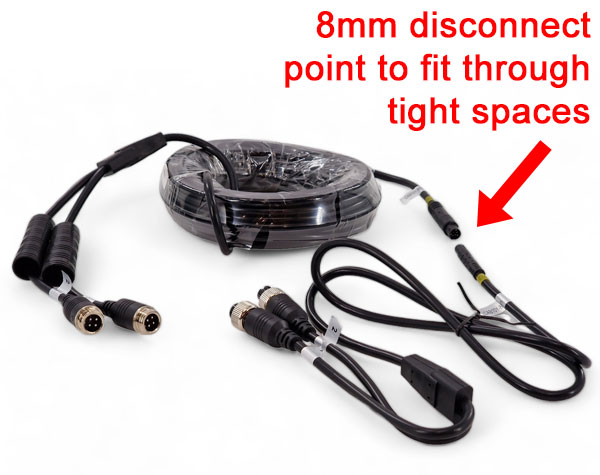

Optional slimline 8mm disconnect point on extension cable - The cable length selection drop down menu includes an 8mm disconnect point option on selected cable lengths. If you select this option we will supply a version of the main extension cable that has a small 8mm diameter disconnect point, so that the larger connector is temporarily removed to allow for easy feeding through the vehicle and any tight gaps/cupboards etc you may encounter. The disconnect is 1M from the front of the cable, so it will re-join close to the monitor and convert back to the 4 pin screw connector for the monitor input.

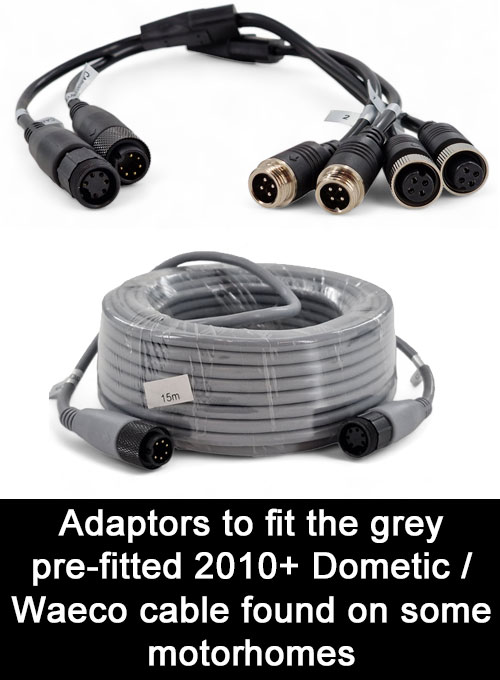

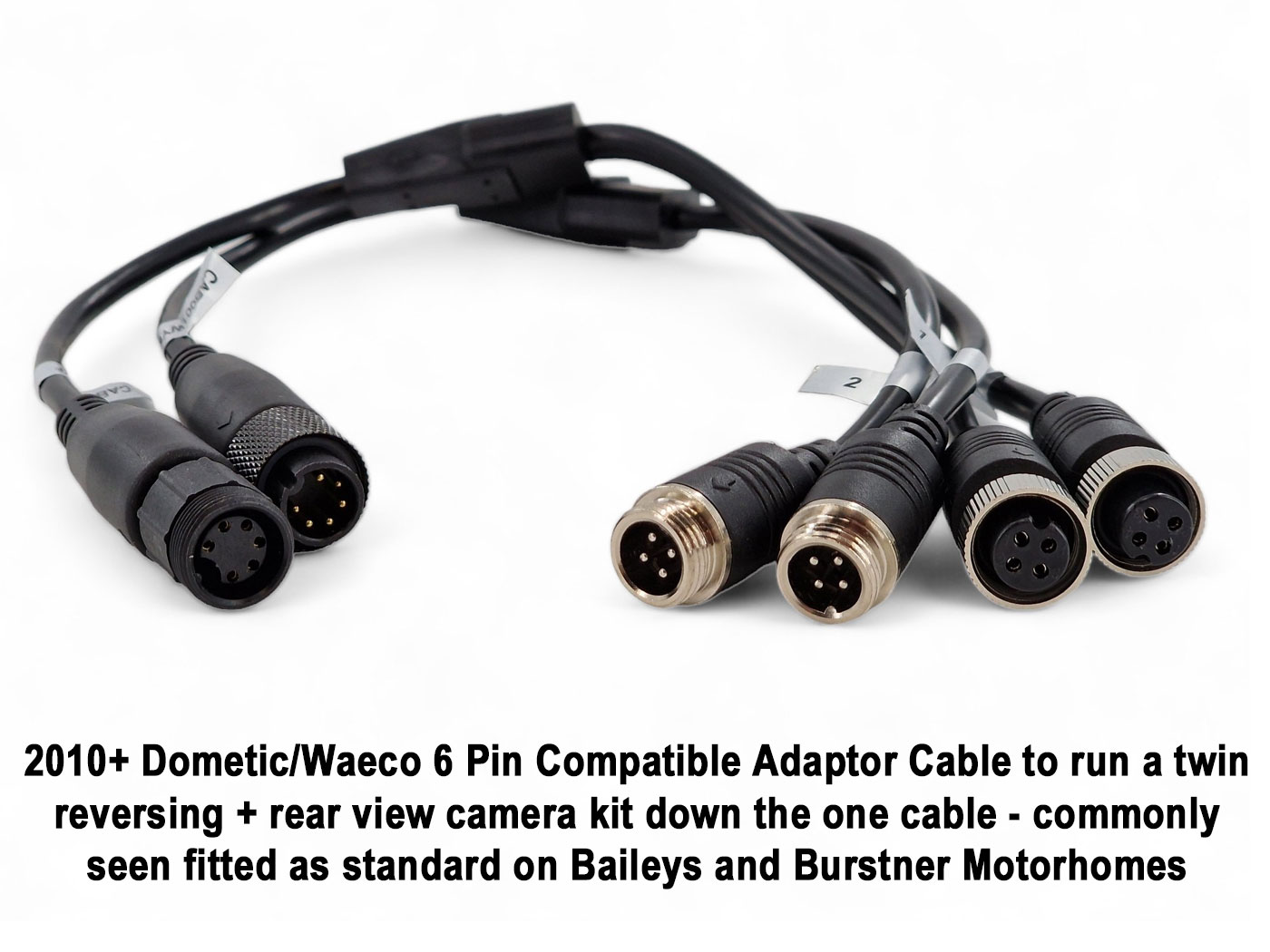

Optional Pre-fitted Cable Adaptors for 2010+ Motorhomes - In the cable length section you will find there is an option to add 2010+ Dometic / Waeco compatible adaptor cables to the kit, instead of a new cable. This type of grey cable is the most commonly found pre-fitted to motorhomes by the factory. Especially common in 2010+ Baileys and Burstner motorhomes. Our adaptors will screw and lock to this original cable. Check out our YouTube video showing the install of our twin lens reversing camera system to the 6 pin pre-fitted Dometic cable (opens in new tab).

Reversing Safety - The amount of time I have had the phone call "I keep hitting things when I reverse, I had better get a reversing camera". Increasing your visibility of the rear of your vehicle can help reduce the chances of hitting a person, or colliding with another vehicle/object. Not only will this help avoid extra unexpected stress and costs, this will also reduce the stress whilst manoeuvring.

For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.
