Case IH / New Holland 3-Camera Adaptor Cable for AFS Pro / IntelliView | Adaptor R

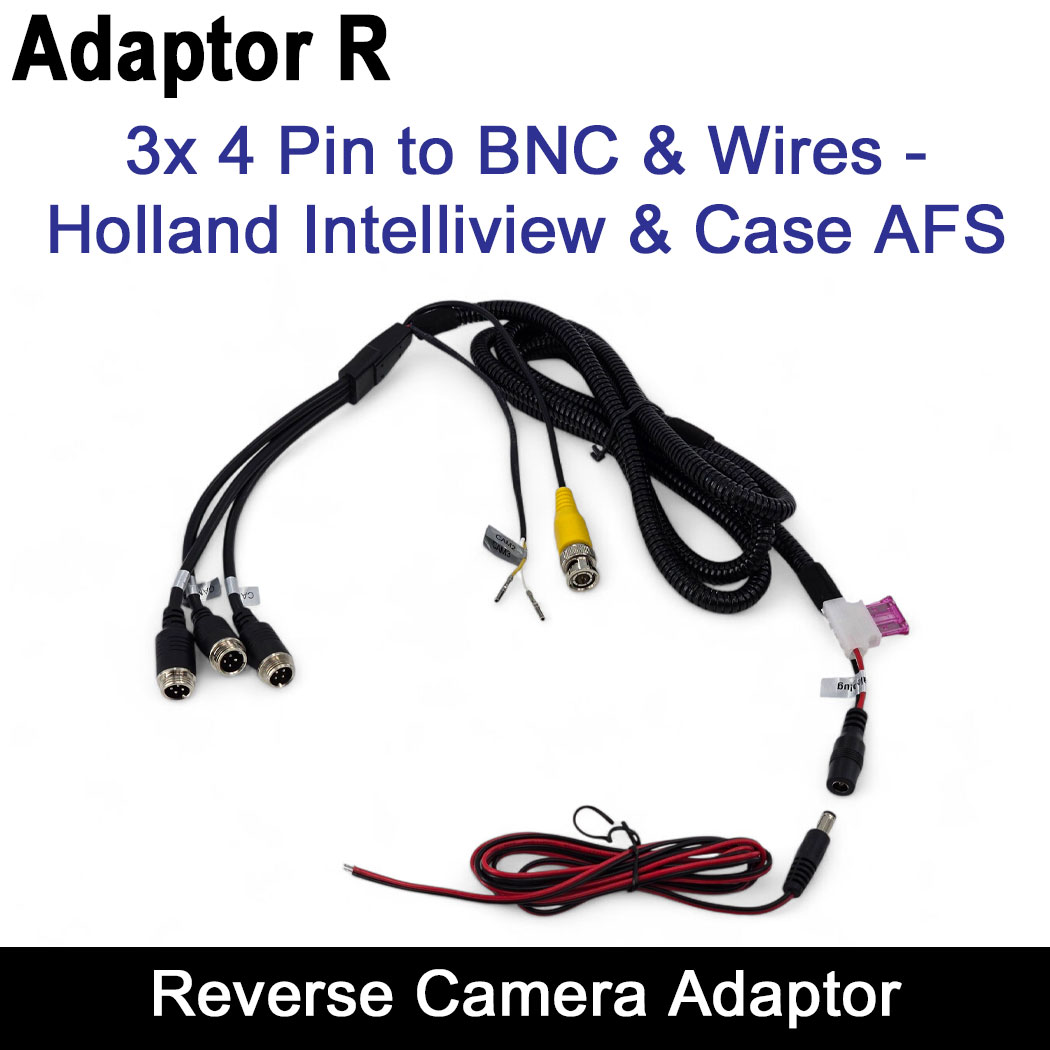

The Adaptor R is a 3-camera connection lead designed specifically for Case IH AFS Pro and New Holland IntelliView monitors. It plugs directly into the 26-pin socket on the rear of the display and provides three labelled 4-pin aviation sockets for connecting reversing, implement, or forward-facing cameras. No separate monitor is required – all video feeds appear directly on the OEM screen. Each channel is clearly marked, and the harness includes a video link lead and fitting guide for simple installation.
Case IH / New Holland 3-Camera Adaptor Cable — Adaptor R
Add up to three external cameras to your AFS Pro / IntelliView display and keep everything on one factory screen. The Adaptor R plugs into the 26-pin port on the back of the OEM monitor and provides three labelled 4-pin aviation sockets for cameras, plus the necessary video link. Ideal for reversing, implement and forward-facing views on tractors, combines and harvesters.
Compatible displays
- Case IH AFS Pro 200
- Case IH AFS Pro 300
- Case IH AFS Pro 700
- New Holland IntelliView II
- New Holland IntelliView III
- New Holland IntelliView IV
Not compatible
- Case IH AFS Pro / IntelliView Plus II – no video input support
Key features
Up to 3 cameras on the factory screen (no extra monitor)
Direct 26-pin plug-in with secure latch
Pre-terminated 4-pin aviation camera sockets (CAM1 / CAM2 / CAM3)
Shielded cabling for clean video signals
What’s included
Adaptor R 3-camera harness

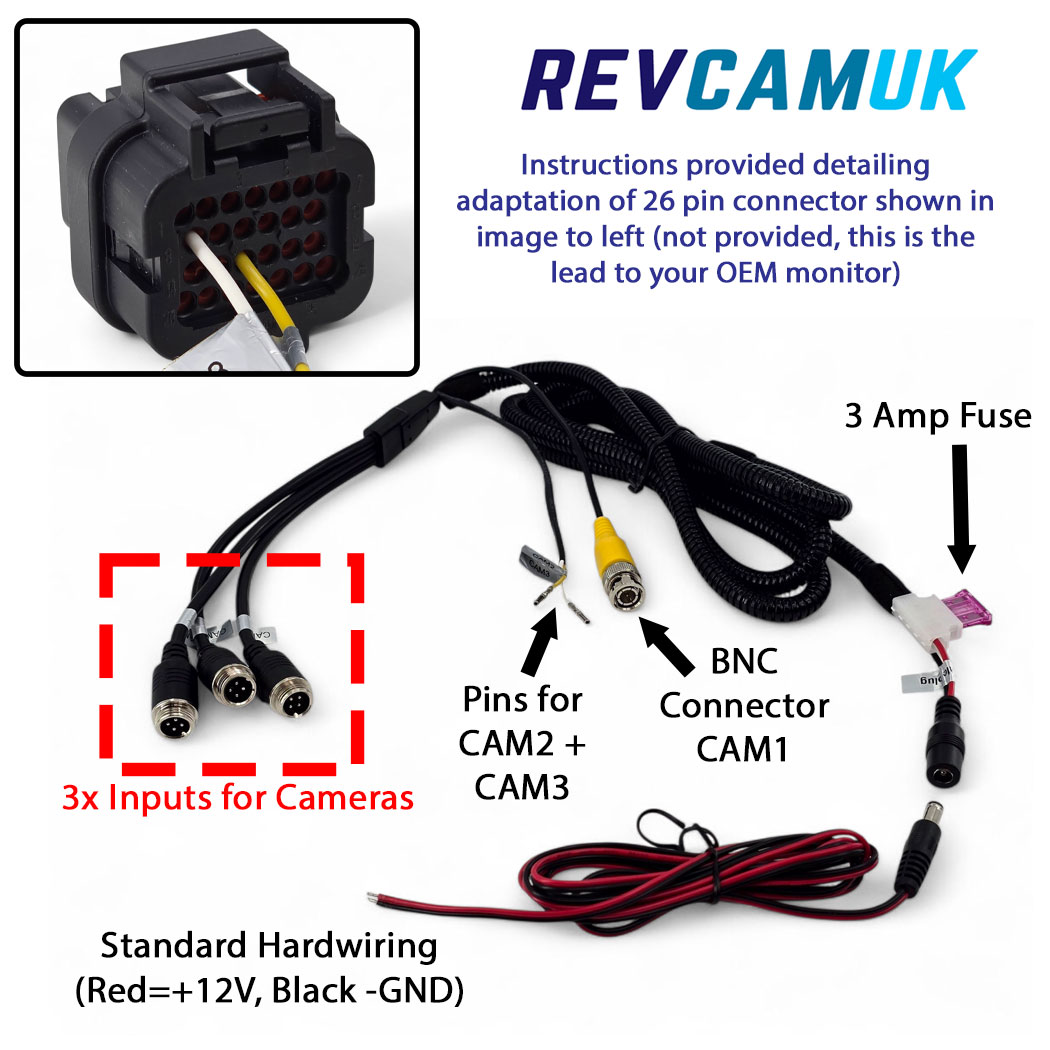

BNC Video link lead as required for the monitor input, plus 2x wires with correct pins for the existing 26 pin connector
Basic fitting and pin-layout guide including video link
Power & wiring notes
This adaptor carries video only — please power cameras from a suitable 12 V supply on the machine (3 amp inline fuse and wires provided).
Route and secure cables away from moving parts and heat sources. Check image and switching on all three channels before finalising cable runs.
Typical uses
Rear-view for hitch and road work
Implement view for balers, spreaders and trailers
Forward or auger view on combines and harvesters
Need cameras or extension leads?
We stock compatible 4-pin cameras, extension leads and adaptors to suit most installs. Get in touch if you’d like a matched kit for your machine and cab layout.
PDF Downloadable Instructions
Video Preview of Product
