Sony CCD Black Bracket Reversing Camera Kit with 5" Display | PM51B-SD

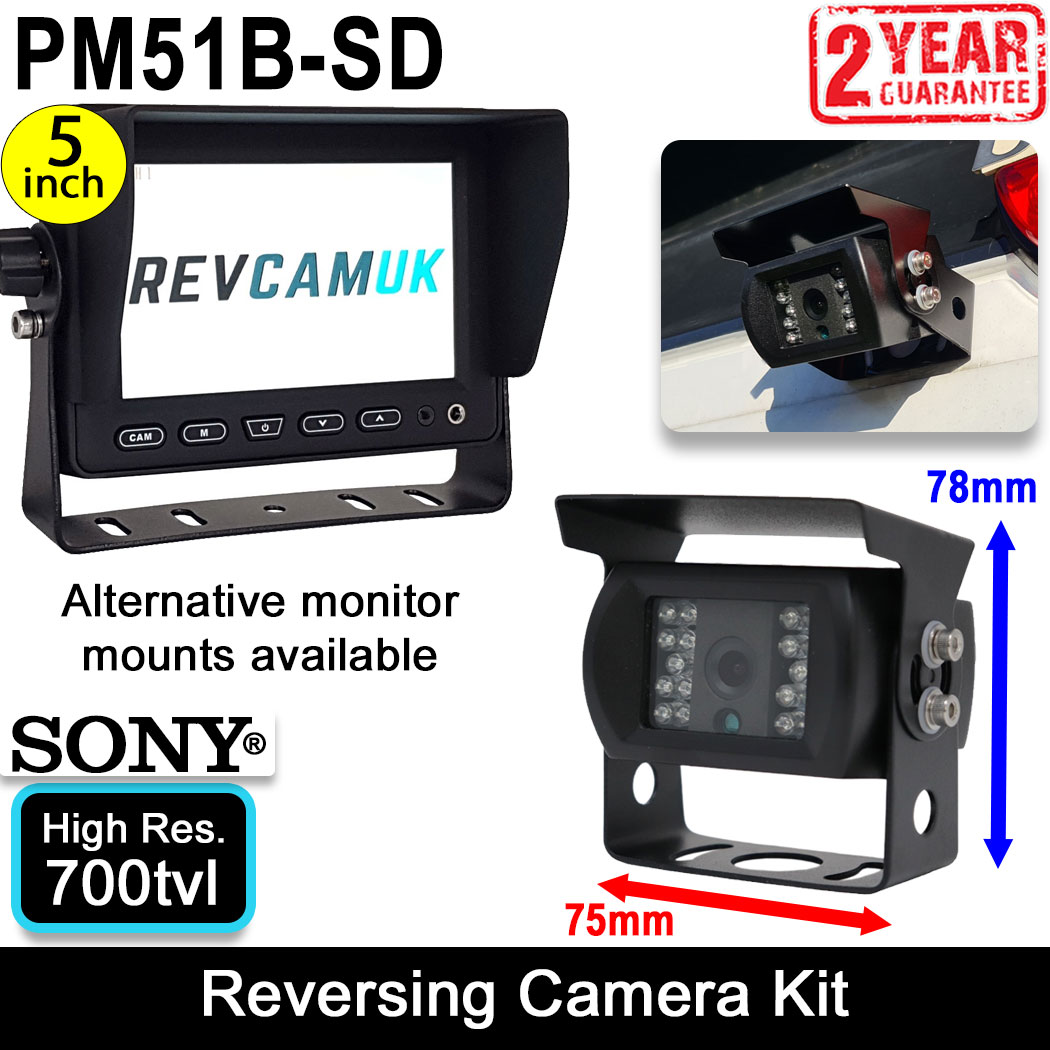

A reversing camera kit includes our compact 5-inch display and our black-painted stainless steel bracket reverse camera. The high-resolution digital LCD panel on the monitor and the Sony 1/3" CCD 700tvl image sensor on the camera means you can expect a good picture quality day and night.
5" Monitor + Black Bracket Reversing Camera Kit Details
This reversing camera kit combines our compact 5-inch display and black-painted stainless steel bracket reverse camera. The high-resolution digital LCD panel on the monitor and the Sony 1/3" CCD 700tvl image sensor on the camera means you can expect a good picture quality day and night. You can select between either a 120 degree wide angle lens (for general rear vision and parking), or a 60 degree angle lens (for specific rear view only use - gives a more natural distance perception for long range viewing vs wide angle). The kit offers :

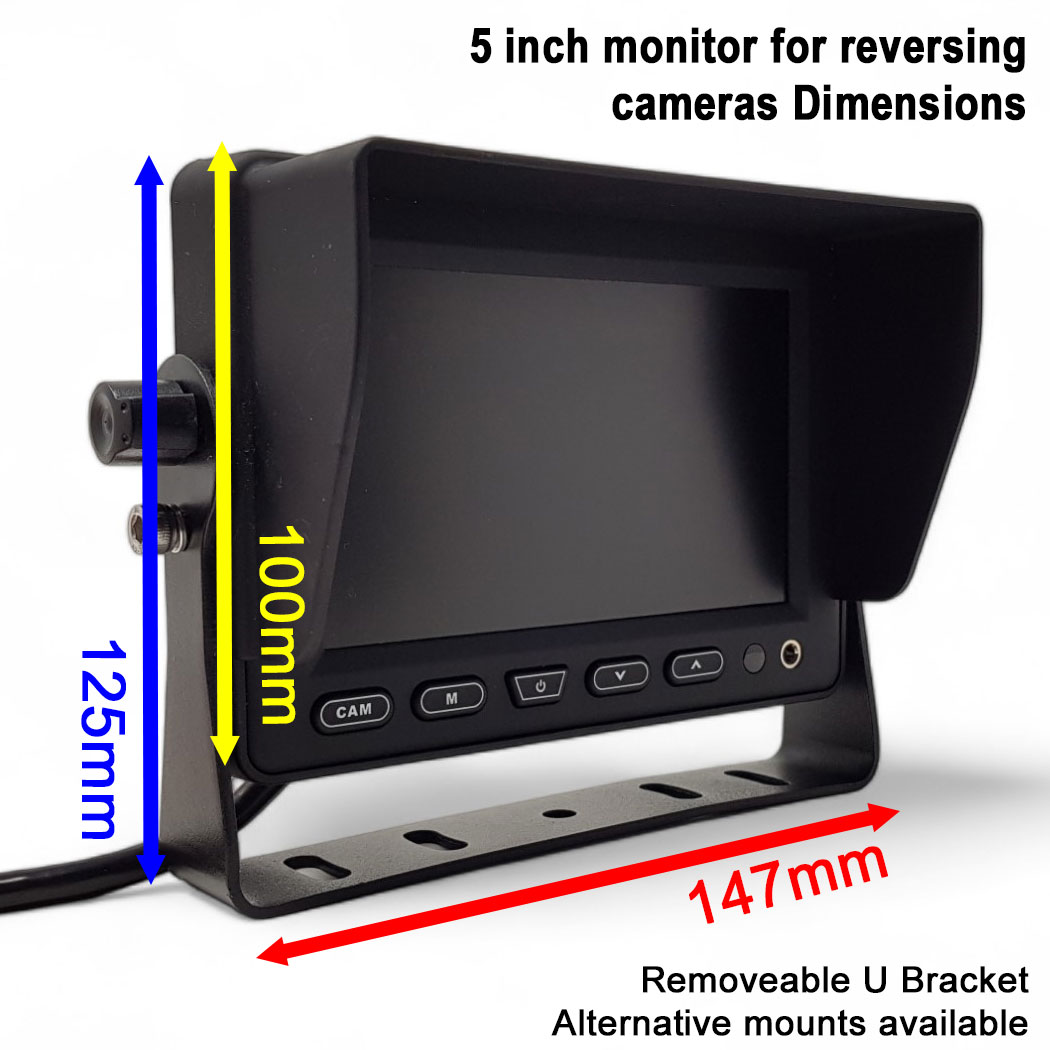

High Resolution Display - Our compact 5 inch stand/dash mount monitor display still packs a punch thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems).
High Resolution Reverse Camera - This bracket camera is fitted with a Sony 811 700tvl 1/3" CCD image sensor. Very widely respected in the CCTV industry. The image sensor is the part of the camera that captures the picture detail, so it has a huge impact on picture quality.
Anti-Rust Stainless Steel Bracket and Hood - Both parts of the bracket are made from painted stainless steel. Stainless steel doesn't suffer from the rusty, broken brackets that mild steel suffers from. Most reversing cameras you find on the market today are still using mild steel. You can check using a magnet - mild steel will stick to the magnet, whilst stainless steel won't. The paint finish on both bracket and main body is also matt finish as we find this is more corrosion resistant than gloss finish paints. This reversing camera will stay looking good for a long time.

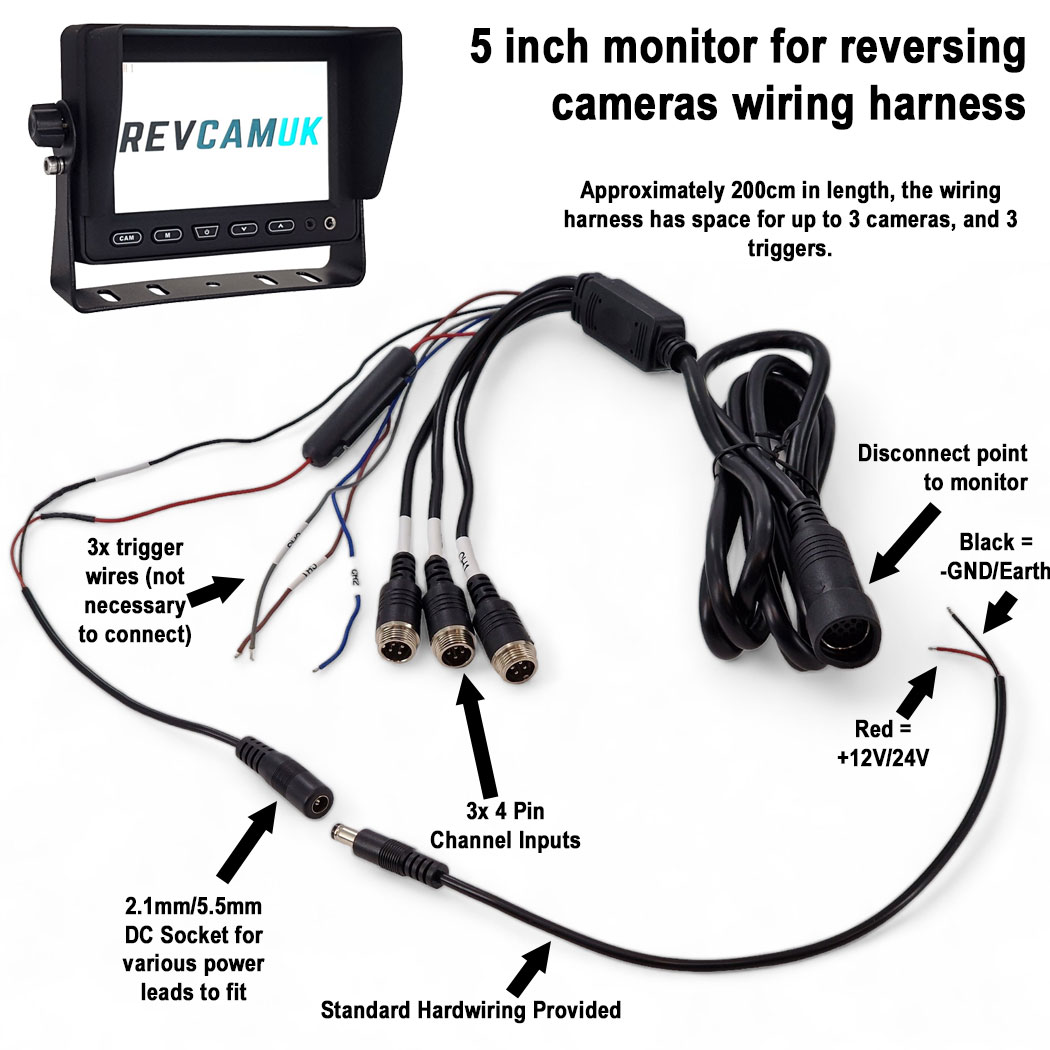

Easy-Fit Wiring - Using the 4 pin aviation cabling, this system is easy to wire up as the monitor provides power to the camera via the all in one locking waterproof connector cables. We have used 4 pin cables since the mid 2000's, it has now become the dominant cable connector in the industry. Strong and durable connectors, they can even be left outside in wet and freezing conditions.
Compact Size Monitor Display- This monitor is usually selected by 4x4, motorhome and van owners in vehicles where dashboard space may be too tight to fit the more commonly fitted 7 inch sized displays.
Two Year Guarantee and Lifetime Support - This monitor and reversing camera kit should last a very long time without any issue. We guarantee it to be free from faults for two years. After two years we are able to offer low cost repairs on the monitor to keep your system in good condition and avoid extra time or expense installing all new components. We also keep good stock of spare parts such as wiring harnesses, cables, and cameras should you decide to take the monitor out of the vehicle with you when you sell your vehicle but leave the wiring where it is.
Choice of power options - We have had a DC socket added to the monitors wiring harness that allows you to select various power lead attachments to plug in to this. As standard you are supplied with a lead that terminates in a red wire (+12V / +24V) and black wire (Earth / Ground). You may also choose from a cigarette lighter 12V plug option, or an easy wire fuse tap option that allows you to hardwire the whole kit without soldering or crimping. Simply remove a fuse from the fuse box, insert it in to the fuse tap, then connect the earth terminal to a chassis screw/bolt. See the power options tab for more details.
Alternative bracket options - The monitor has a rear channel that allows our alternative monitor brackets to be installed. This choice includes quick release, ceiling mount, heavy duty, and temporary suction mount brackets. See the monitor bracket options tab for more details.
Optional slimline 8mm disconnect point - The cable length selection drop down menu includes an 8mm disconnect point option on selected cable lengths. If you select this option we will supply a version of the main extension cable that has a small 8mm diameter disconnect point, so that the larger connector is temporarily removed to allow for easy feeding through the vehicle and any tight gaps/cupboards etc you may encounter. The disconnect is 1M from the front of the cable, so it will re-join close to the monitor and convert back to the 4 pin screw connector for the monitor input.
Choice of 120° or 60° lens angle for camera - If you are purchasing as you want a reversing camera system then I would recommend you select the 120° lens option. This will give you a wider field of view and you will see more obstacles that are close to the back of your vehicle. If you are purchasing as you want a rear view driving camera system I would recommend the 60° lens option. When viewing further back down the road, the lower the lens angle, the less distance perception will be distorted. Having said that, I know a lot of people still use the 120° option for rear view due to the wider spread across the adjacent lanes on the motorway.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
Power Connection Options
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | MON5001 5 inch Vehicle Monitor Display Reversing Camera Monitor Fitting Instructions Our guide to the compact 5 inch monitor, it's fitting and menu settings. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |
Monitor
5” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Luminance: 350cd/m2
2 Inputs
PAL/NTSC/AUTO
Full function Remote Control
120° wide angle camera option
Image Sensor :1/3 SONY CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Minimum Illuminstion: 0.01 LUX
S/N Ratio: ≥48dB（AGC OFF）
Horizontal Resolution: 700 TV lines
Video Output:1.0vp-p,75Ohm
Backlight compensation: Auto
Vibration Rate: 4G
Built-in Lens: 3.6mm
Lens Angle: 120° (D) / 85°（H）
Working Temperature: -20℃ to 80℃ RH95% Max
Storage Temperature: -30℃ to 85℃ RH95% Max
Waterproof to Ip68
18 Infra red LEDs to provide night view
Mirror image
Stainless Steel Bracket (painted)
60° narrow angle camera option
Image Device:SONY 1/3" CCD 811 700TVL 960H
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
18 Infra red LEDs to provide night view
Waterproof with adjustable shade to prevent glare from sun
Mirror image only
Stainless Steel Bracket (painted)
