Ford Transit Custom 2024+ VW Transporter T7 Brake Light Camera | CAM857
Premium brake light reversing camera designed specifically for the latest shape Ford Transit Custom 2024+, Ford Tourneo Custom 2024+, VW Transporter T7 2025+ and VW Caravelle T7 2025+ models. Maintains a clean factory-style appearance whilst improving rear visibility and reversing safety with a high resolution 700TVL image sensor, ultra wide angle 170° lens, IP68 waterproof housing, optional RCA adaptor compatibility and support for extension cable lengths from 1m to 20m. Backed by our highly respected 2 year guarantee.

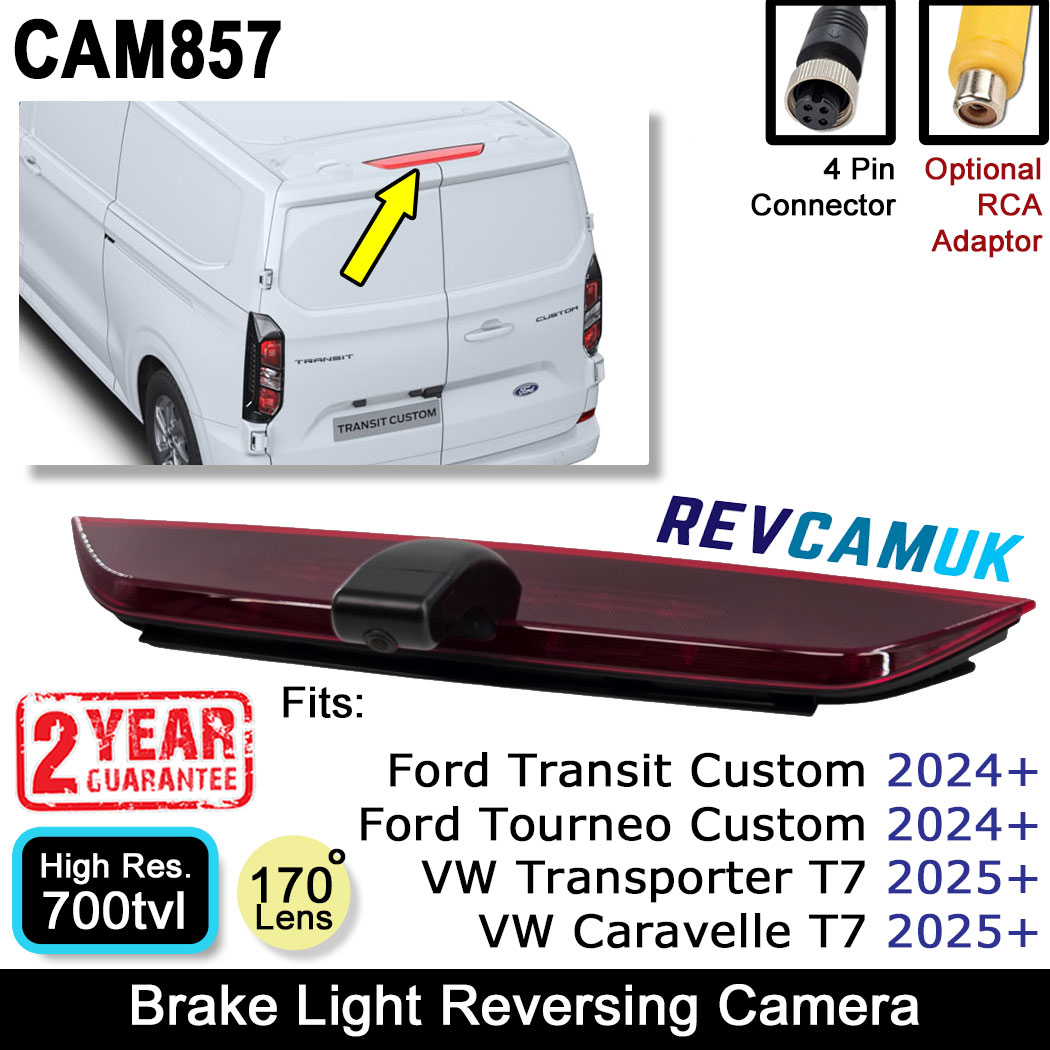

Introducing our Ford Transit Custom / VW Transporter T7 Brake Light Reversing Camera
Brake light reversing camera designed specifically for the latest shape Ford Transit Custom and Volkswagen Transporter T7 vans. Increase rear visibility and reversing safety whilst maintaining a clean factory-style appearance. Easy to install, high resolution, durable, and backed by a two year guarantee from the reversing camera specialists.
This brake light reversing camera fits the following vans:
Ford Transit Custom 2024 - Present
Ford Tourneo Custom 2024 - Present
VW Transporter T7 2025 - Present
VW Caravelle T7 2025 - Present
This camera has the following advantages :
Great Image Quality - We do not settle for base specification image quality when it comes to our brake light reversing cameras. This model uses a high resolution 700TVL image sensor combined with a premium all-glass composite lens for a colourful, sharp and reliable image. We specifically avoid cheaper plastic-containing lenses because they can deteriorate over time from UV exposure. Our all-glass lens design is built for long-term durability.
IP68 Waterproof Protection - This reversing camera features an IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Designed for year-round use on commercial vehicles, camper conversions and fleet vans.
Increases Safety Whilst Reversing - One of the biggest advantages of fitting a high-level brake light camera is the improved visibility directly behind the vehicle. The elevated mounting position gives a clearer view when manoeuvring, reversing or parking, helping reduce blind spots around the rear of the van.
130°(H) / 170°(D) Ultra Wide Angle Lens - The ultra wide angle lens helps provide excellent visibility around the rear corners of the vehicle, making reversing and parking much easier in tighter areas.
2 Year Guarantee - We believe our reversing camera systems come from one of the best factories available. The factory fully supports our highly respected two year guarantee, and we find the fault rate extremely low. In the unlikely event of a problem within the guarantee period, we will provide a replacement.

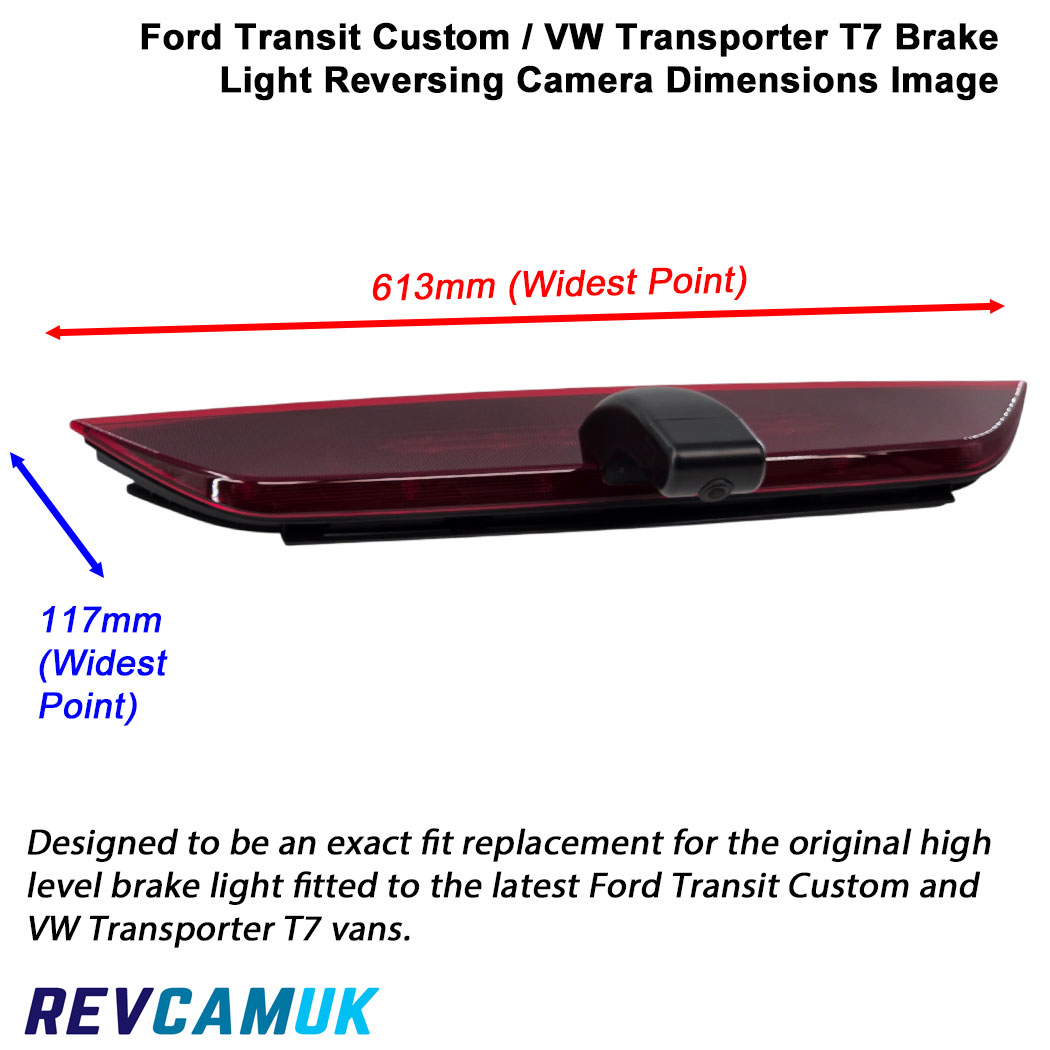

Maintains a Clean Factory Appearance - This brake light reverse camera has been designed specifically to replace the factory high level brake light housing used on the latest Ford Transit Custom and Volkswagen Transporter T7 models. Once installed, it maintains a neat OEM-style appearance without the look of an aftermarket add-on camera.

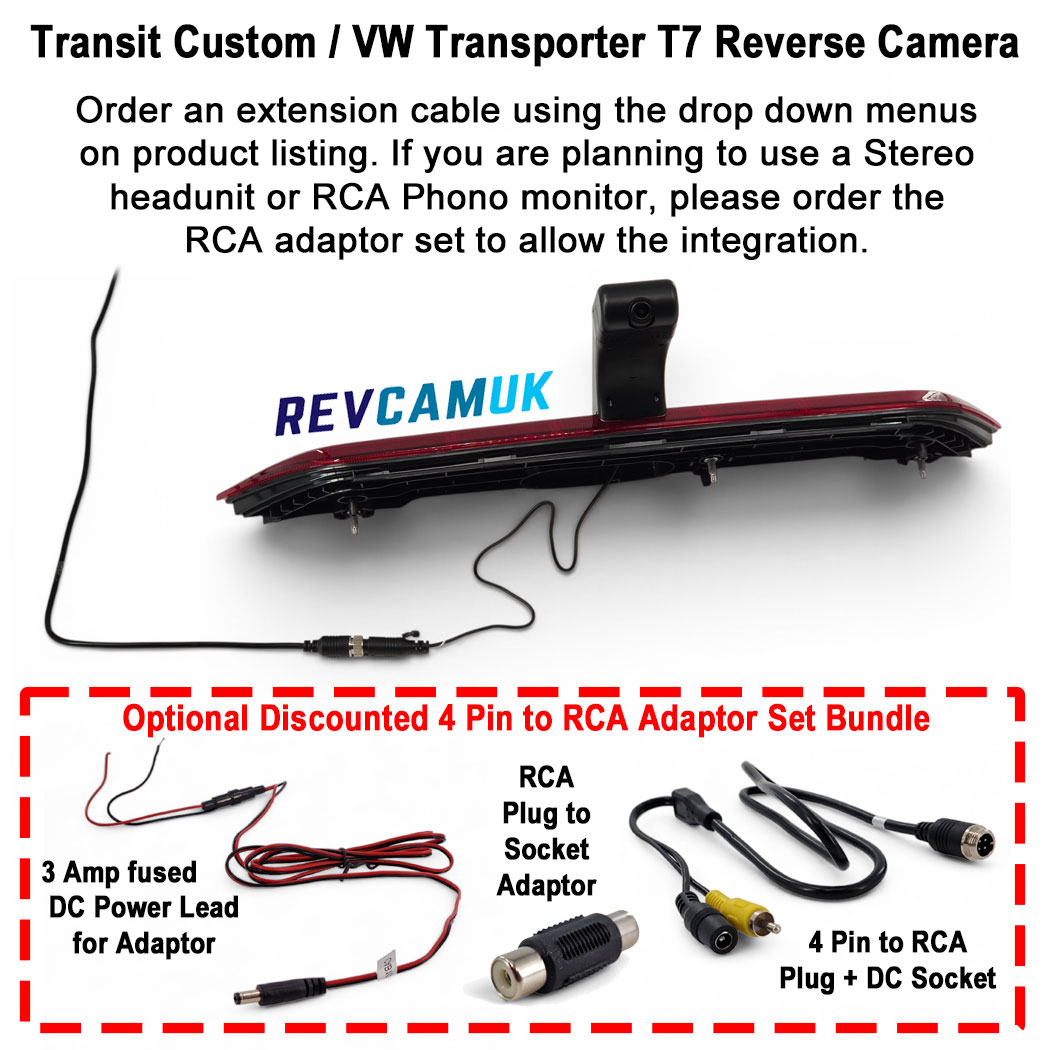

Wide Choice of Cable and Adaptor Options - Use the drop down menu above to select your preferred cable and connection options. If you are connecting to one of our 4 pin aviation monitors or extension cables, simply choose the camera only option or select the required cable length. If you are connecting to a stereo head unit or RCA phono monitor, you will require the optional RCA adaptor. You can either adapt at the front using a 4 pin cable to carry both video and power, or adapt at the rear using the reverse light for power and RCA for video signal. Please also see our downloadable PDF instructions for more detailed fitting guidance.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo head units. |
Technical Specification
Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
Sensing Area : 4.6228mm x 3.6112mm
Minimum illuminations : 0.1 Lux (day)
Lens Angle : 170 degrees
Waterproof : IP69K
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
