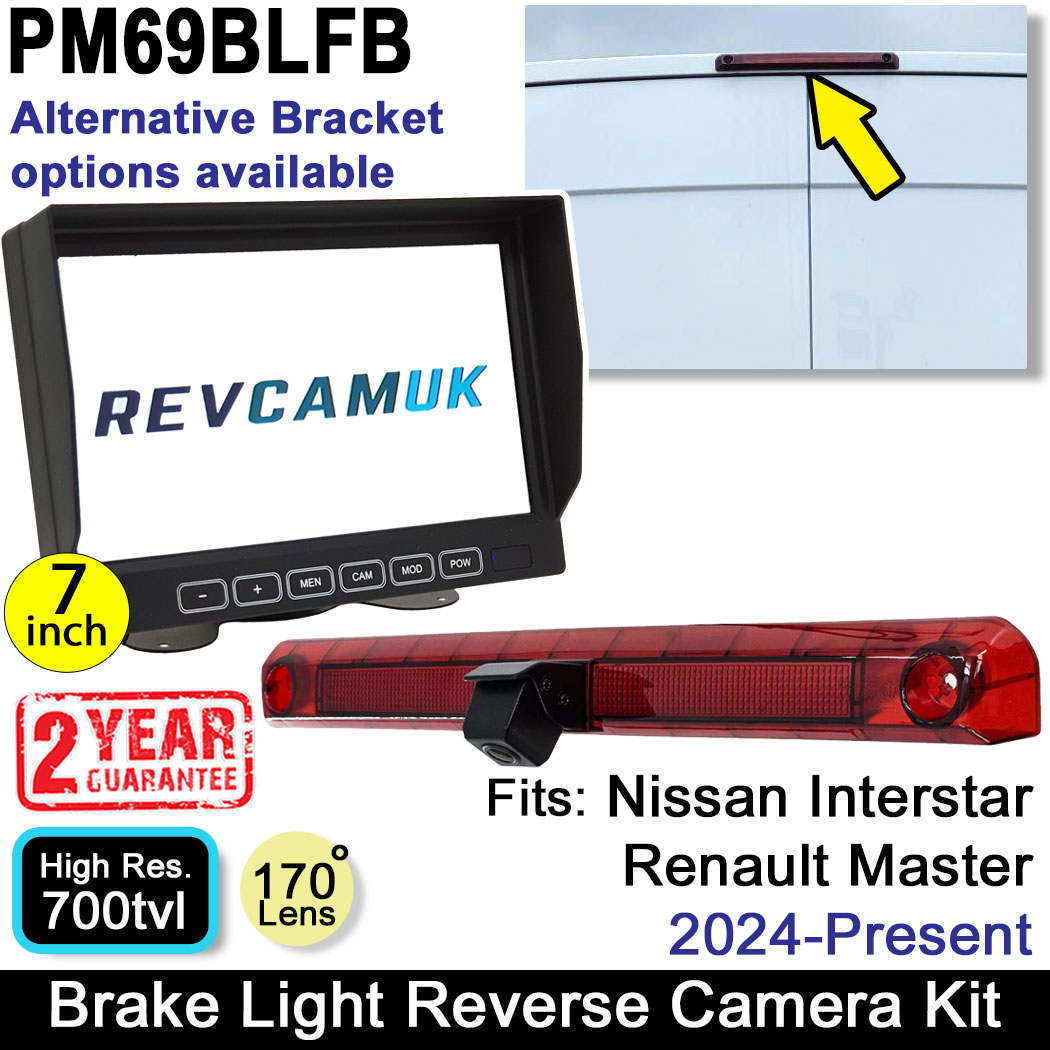

Renault Master / Nissan Interstar Brake Light Reversing Camera Kit with 7" Dashboard Monitor Display | PM69BLFB
Complete OEM-style reversing camera kit designed specifically for the 2024-present Renault Master and Nissan Interstar. Includes the CAM856 brake light reversing camera and a premium 7" dashboard monitor display for improved rear visibility and reversing safety. Features a high resolution 700TVL image sensor, 170° wide angle lens and IP68 waterproof protection. Backed by a 2-year RevcamUK guarantee and lifetime support.
About our Renault Master / Nissan Interstar Reversing Camera Kit for Van Brake Light
High quality brake light reversing camera kit with premium 7 inch dashboard monitor designed specifically for the 2024-present Renault Master and Nissan Interstar vans. The CAM856 brake light reversing camera uses a high quality 700TVL image sensor paired with a premium all-glass composite lens to produce a colourful, sharp and reliable reversing image.
This brake light reversing camera kit fits the following vans:
Renault Master 2024 - Present
Nissan Interstar 2024 - Present
This Reverse Camera Kit has the following advantages :
Great Camera Image Quality - We do not settle for base specification image quality when it comes to our brake light reversing cameras. This model uses a high resolution 700TVL image sensor combined with a premium all-glass composite lens for a colourful, sharp and reliable image. We specifically avoid cheaper plastic-containing lenses because they can deteriorate over time from UV exposure. Our all-glass lens design is built for long-term durability.
High Resolution Monitor Image Quality - Our 7 inch stand/dash mount monitor provides an excellent image thanks to its 800x480 pixel digital LCD panel. Combined with the CAM856 brake light reversing camera, the system delivers a bright, colourful and clear image to help improve reversing visibility and overall safety.
Advanced Menu System - Unlike many basic reversing camera monitors, this display includes a wide range of adjustable settings including selectable parking guidelines, adjustable guideline width and positioning, individual channel settings and interval channel switching. We also provide detailed instructions to help you get the most from the monitor features.
Ability to Add Guidelines to Image in Reverse - The monitor can be configured to display adjustable parking guidelines when reverse gear is selected. Width, position and measurement display settings can all be customised. Please see our 7 inch monitor instruction manual for more details.
IP68 Waterproof Protection - This reversing camera features an IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Designed for year-round use on commercial vehicles, camper conversions and fleet vans.
Increases Safety Whilst Reversing - One of the biggest advantages of fitting a high-level brake light camera is the improved visibility directly behind the vehicle. The elevated mounting position gives a clearer view when manoeuvring, reversing or parking, helping reduce blind spots around the rear of the van.
130°(H) / 170°(D) Ultra Wide Angle Lens - The ultra wide angle lens helps provide excellent visibility around the rear corners of the vehicle, making reversing and parking much easier in tighter areas.
2 Year Guarantee - We believe our reversing camera systems come from one of the best factories available. The factory fully supports our highly respected two year guarantee, and we find the fault rate extremely low. In the unlikely event of a problem within the guarantee period, we will provide a replacement. The monitor and cabling are also included within the guarantee period.
Maintains a Tidy Factory Look - This brake light reverse camera has been designed specifically to replace the original high level brake light housing used on the latest Renault Master and Nissan Interstar models. Once installed, it maintains a neat OEM-style appearance without the look of an aftermarket add-on camera.
Alternative Bracket Options - The monitor includes a rear mounting channel compatible with our range of optional monitor brackets. This includes quick release, ceiling mount, heavy duty and suction mount options. A discounted bracket option can be selected using the drop down menu above.
Power Connection Options
You have the option to add additional leads that plug into a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder or crimp to a power supply.
On the drop-down menu you will notice there are two selectable options: one to add a lighter plug, and one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead, which attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some customers choose this option simply to test their new kit before hardwiring it permanently.
View full details of this power option (opens in new tab)
Fuse Tap (Mini Blade or Standard Blade)
Selecting this option adds an easy-wire fuse tap power lead with a built-in earth terminal connector.
We designed and had these products produced in 2023 to allow customers to hardwire a reversing camera system easily, with minimal tools required. Fuse taps are already popular for dash cam installations, so we adapted them specifically for reversing camera kits.
Unlike many fuse taps, our easy-wire kits come supplied with 2 metres of twin cable (power and earth) already attached. The wires can be separated if you need to route the earth away from the fuse box.
Choose a fuse position that is live only when the ignition is switched on. Remove the original fuse and place it into the spare slot on the fuse tap. The correct rated fuse for the camera system is already installed. Insert the fuse tap into the fuse box and secure the earth terminal to a suitable chassis bolt or screw.
The mini blade fuse is the most commonly used type on modern vehicles.
View full details of this power option (opens in new tab)
Standard blade fuse taps are still very common, even on newer vehicles.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | 7 inch Display Instructions If you choose the PM60 series kits you will have the MON16/MON745 monitor supplied, which is covered by these instructions. They will guide you through the various menu functions including rotation, adjustable guidelines, trigger delays, interval mode, and display settings. |
Technical Specs
Monitor
7” Colour LCD screen
Audio Output: 0.5W
Loudspeaker: one 15x40mm round loudspeaker
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control
Camera
Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
Sensing Area : 4.6228mm x 3.6112mm
Minimum illuminations : 0.1 Lux (day)
Lens Angle : 170 degrees
Waterproof : IP69K
Camera head : Adjustable 20 degrees up/down
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
