Power Connection Options

You have the option to add additional leads that plug into a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder or crimp to a power supply.

On the drop-down menu you will notice there are two selectable options: one to add a lighter plug, and one for a fuse tap. Scroll down for details on each option.

Lighter Plug

Selecting this option adds an additional lighter plug lead, which attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some customers choose this option simply to test their new kit before hardwiring it permanently.

 View full details of this power option (opens in new tab)

Fuse Tap (Mini Blade or Standard Blade)

Selecting this option adds an easy-wire fuse tap power lead with a built-in earth terminal connector.

We designed and had these products produced in 2023 to allow customers to hardwire a reversing camera system easily, with minimal tools required. Fuse taps are already popular for dash cam installations, so we adapted them specifically for reversing camera kits.

Unlike many fuse taps, our easy-wire kits come supplied with 2 metres of twin cable (power and earth) already attached. The wires can be separated if you need to route the earth away from the fuse box.

Choose a fuse position that is live only when the ignition is switched on. Remove the original fuse and place it into the spare slot on the fuse tap. The correct rated fuse for the camera system is already installed. Insert the fuse tap into the fuse box and secure the earth terminal to a suitable chassis bolt or screw.

The mini blade fuse is the most commonly used type on modern vehicles.

 View full details of this power option (opens in new tab)

Standard blade fuse taps are still very common, even on newer vehicles.

 View full details of this power option (opens in new tab)

Technical Specification

Vehicle Mirror Monitor

7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2x 4 pin Inputs
PAL/NTSC/AUTO

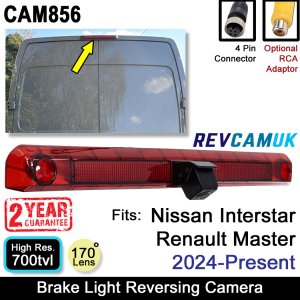

Brake Light Reversing Camera

Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
Sensing Area : 4.6228mm x 3.6112mm
Minimum illuminations : 0.1 Lux (day)
Lens Angle : 170 degrees
Waterproof : IP69K
Camera head : Adjustable 20 degrees up/down
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX

PDF Instructions

We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.

Click preview image to download the PDF file

For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install.

Click preview image to download the PDF file

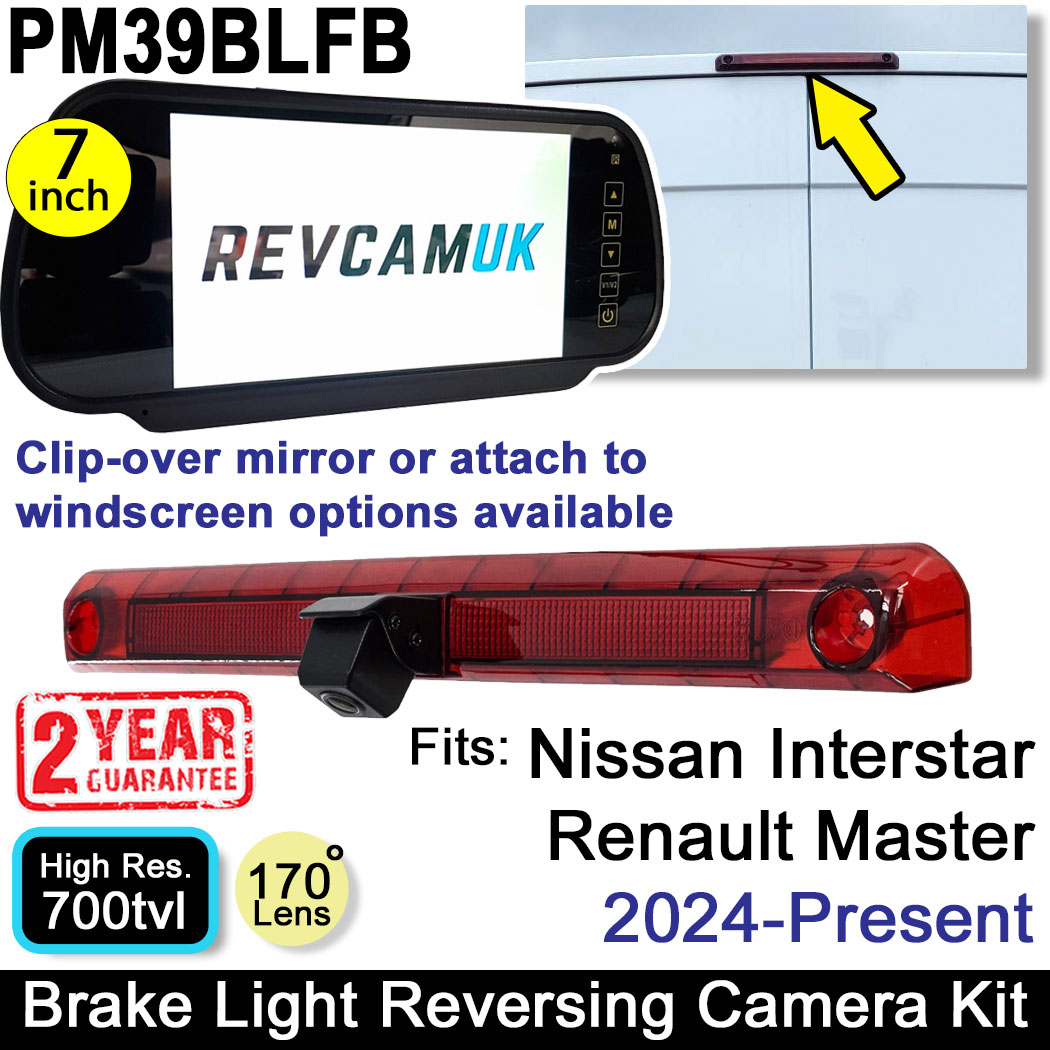

Mirror Monitor Instructions If you choose a mirror monitor kit this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing angle range.

If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.

Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply  Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box.
