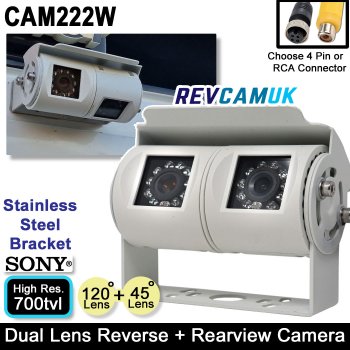

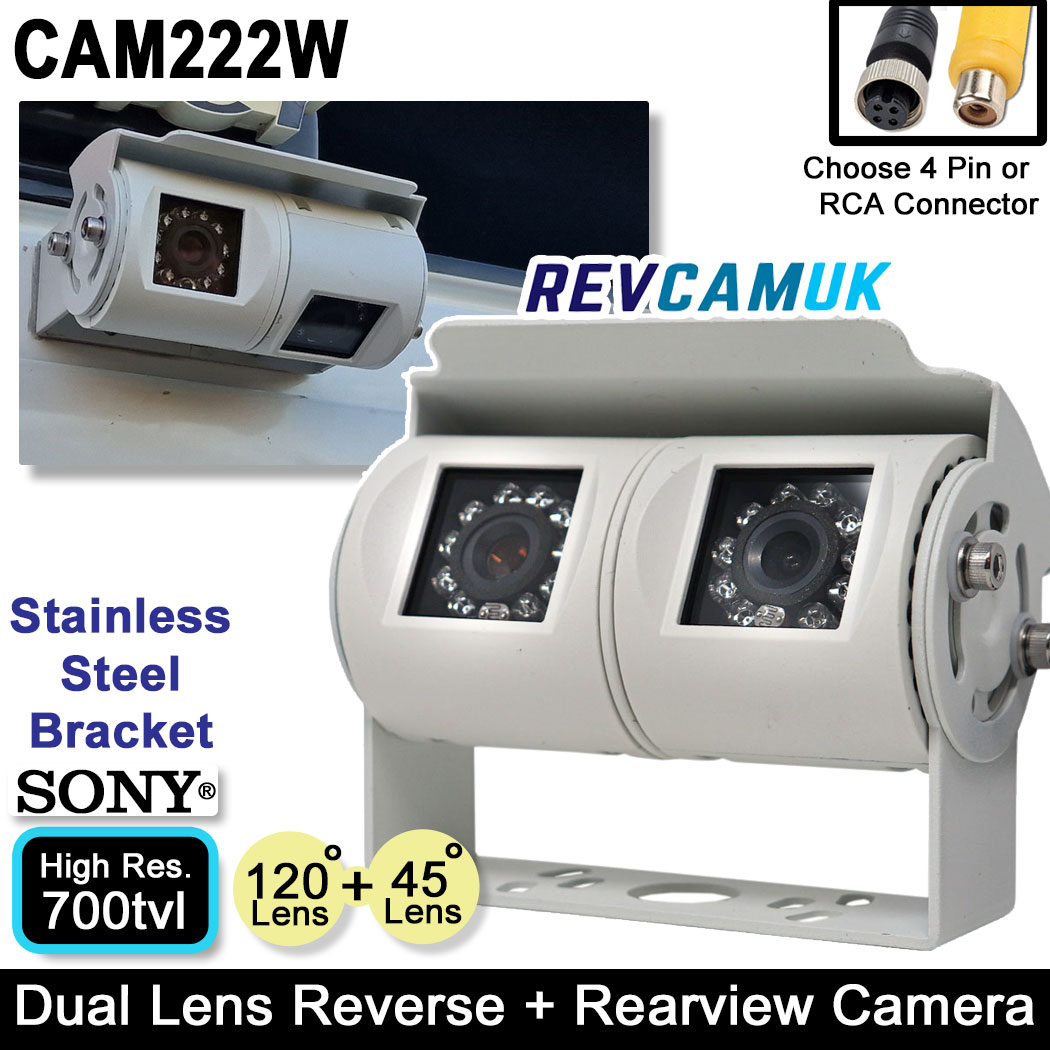

White Dual Lens Rear View + Reversing Camera - Sony CCD 700TVL 1/3" sensor | CAM222W
Our dual twin lens camera has both a reversing camera and rear view camera fitted. Both cameras can be adjusted up/down to achieve the optimum visibility. Ours has a white painted stainless steel bracket fitted to prevent rusty brackets commonly seen elsewhere. We also have our best rated image sensor for standard definition system (Sony 811 1/3" CCD 700TVL) to produce lovely colours/dynamic range/night time image. Choose your required connector type - either 4 pin screw aviation or RCA Phono.
Rear view camera and reversing camera in one white painted rust-proof stainless steel bracket. 8mm narrow angle lens fitted to the driving/rear view camera so that distance perception is more accurate. 2.6mm wide angle lens fitted to the parking/reversing camera so that maximum visibility around the rear of the vehicle is achieved.
IR LED's are used on the cameras to give a good image in the dark eg at night. IR (Infra Red) is invisible to the human eye, but is visible to the camera. This means you can drive with the cameras night vision without blinding following drivers with light.
The camera produces a mirror image, this is essential to replicate what you expect to see in a rear view mirror. This means that someone overtaking you will appear on the correct side of the screen as if it was in your regular mirror.

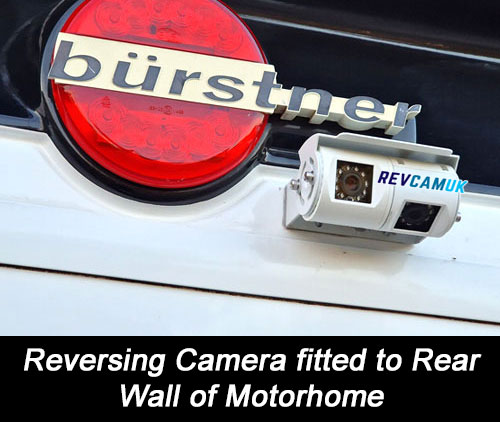

This rear view camera is most popular for motorhomes and vans. It is most commonly fitted to a vertical surface eg rear wall of motorhome, although can also be fitted to a horizontal surface eg the roof.
This camera uses a painted stainless steel bracket, which helps to avoid rust, we also use a matt paint finish to help avoid the flaking seen from gloss finish cameras on edges.
The image sensor used (the part inside the camera which captures the image) is the highly respected Sony 811 1/3" Sony CCD 700TVL. This model of image sensor that is produced by Sony, returns lovely vibrant colours, a respectable 700TV Lines Resolution, and good low light level sensitivity - for a good night time image. Check out our rating compared to other standard definition image sensors.
Choice of RCA Phono or 4 Pin Screw Connectors
Which choice you pick will depend on what type of system you are fitting to. Both connectors will give the exact same video signal performance. The 4 Pin setup has the advantage of just one cable needing to be run. Also if you use a 4 pin monitor, the monitor will regulate the voltage to the camera at a specific level, which gives protection from voltage spikes.

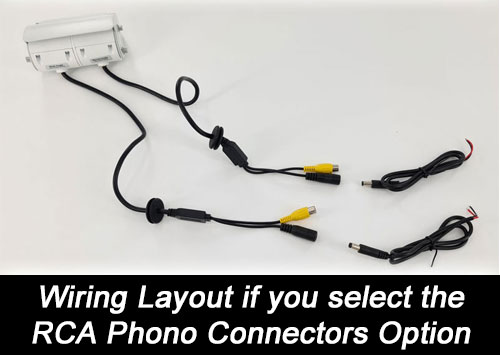

Selecting the RCA Phono option will give you 2 leads approx 45cm in length. At the end of each of these leads, the cable splits in to a yellow Phono RCA socket (which can connect to any of our RCA Phono Extension Cables), and a 2.1mm/5.5mm DC power socket. We provide two DC adaptor cables to red (+12V) and black (ground/earth) bare wires. DC Power extension cables can be purchased to extend the length of these.

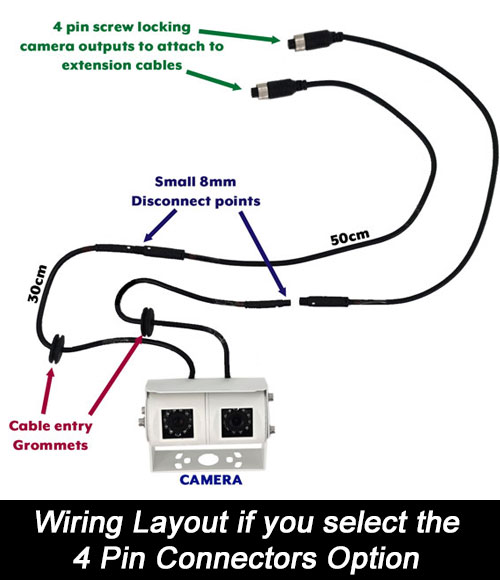

Selecting the 4 pin connector option will give you 2 leads that take you to 4 pin connectors. As standard we will provide you with a small 8mm disconnect point approx 30cm back from the camera. This is to allow for a small cable entry hole to feed cables in. This then connects to a 50cm piece that terminates in the 4 pin screw connector. It is worth mentioning that if you don't plan to take the cable inside the vehicle body straight away you need the version with no 8mm joint, please leave us a note at checkout asking for no 8mm option. This means the cable will go straight to the more durable and waterproof 4 pin connector, ideal for leaving exposed outside in wet and freezing conditions.
If you order the 4 pin version and require cabling, please see our 4 pin extension cables category for all our cable lengths.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
 Click preview image to download the PDF file | Twin lens reversing and rear view camera fitting guide One of our most popular reversing and rear view cameras. Covers fitment and adjustment of the camera, as well as camera care notes. |
Technical Specs
Please see the technical specifications for the product below:
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Apect Ratio of output: 4:3
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
Two Cameras one with wide 120-degree lens and one with narrow 45-degree lens
Mirror image
Stainless Steel Bracket (painted)
